Universal pump assembly provisions for all branded pumps (Eichen,Swann ,DMC ,Lexcru ,BNQS ,Kemflo)
Installation is so easy with a free template of wall mounting provisions
Theme/customer based designs can be made of with MOQ 50nos
10 lit of normal storage tank ; 2 lit of hot storage tank (optional)
SS 304 of 0.8mm thickness with SS support clamps
Inbuilt with Provision of RO+UV+UF+ Alkaline combined
High Quality stainless steel taps
Available with SS202/304 housings

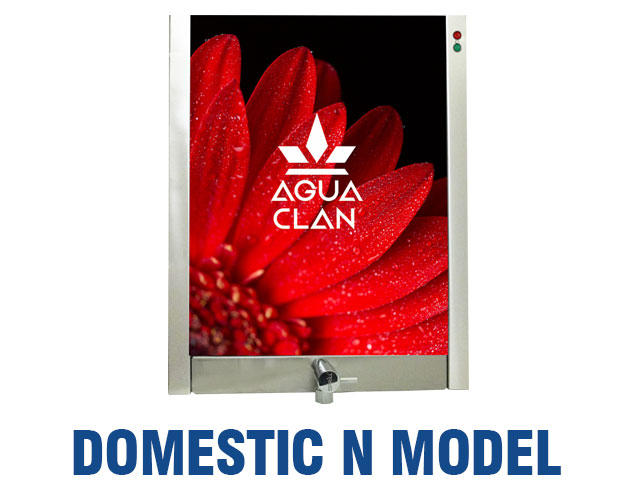

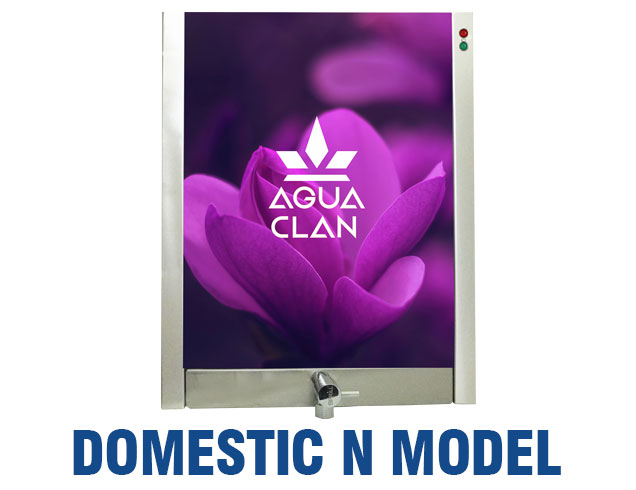

| Model | Aguaclan - DOMCAB-N |
|---|---|
| DOMCAB -N | QTY |
| Overall dimension | 500(H) x 400(L) x 265(W) are in mm. |
| Taps | Normal Antique Tap |
| Water Source | Good water / RO Water |
| Storage Type | Along With dispenser |
| Normal Water Storage Tank Capacity | 8.5 L |
| Water Level Controller | Electronic - Micro Controller Based |
| Method of Level Sensing | Stainless Steel Probes |
| Make of Dispenser | AguaClan |
| Number of Faucets | 1 tap |
| MOC Frame | Stainless Steel 1.2 mm thickness. |
| Power Cord | 16 Amps Model. |
| Power Supply | 230-220 volts. |
| MOC - Housing | Stainless Steel 304 and 0.8/0.6mm thick |
| MOC – Faucets | Stainless Steel SS 304 |
| MOC –Storage Tank- Normal | SS 304 and 0.8/0.6mm thick |
| Plumbing | Customer scope with 1/2” Ball valve |
| Warranty | 6 months only for electrical parts |
| Branding | Yes |
